Moomoo Manual Quotes Chart Drawing Tools

Drawing Tools

Moomoo provides over 30 advanced drawing tools for technical analysis.

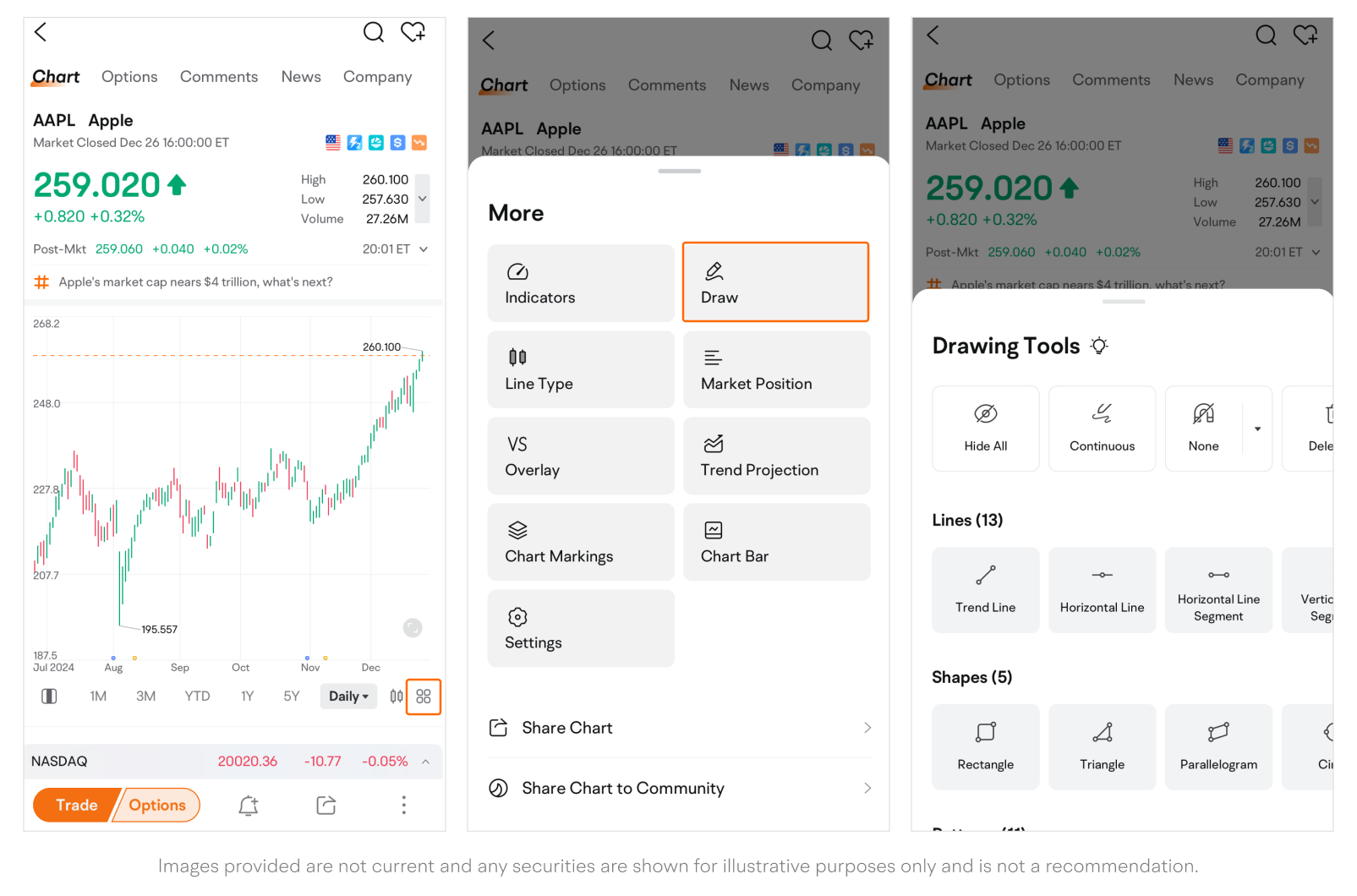

Path: Quotes page > Tap the "More" icon on the chart bar > Drawing Tools.
In landscape orientation, tap the "pencil" icon on the chart bar.

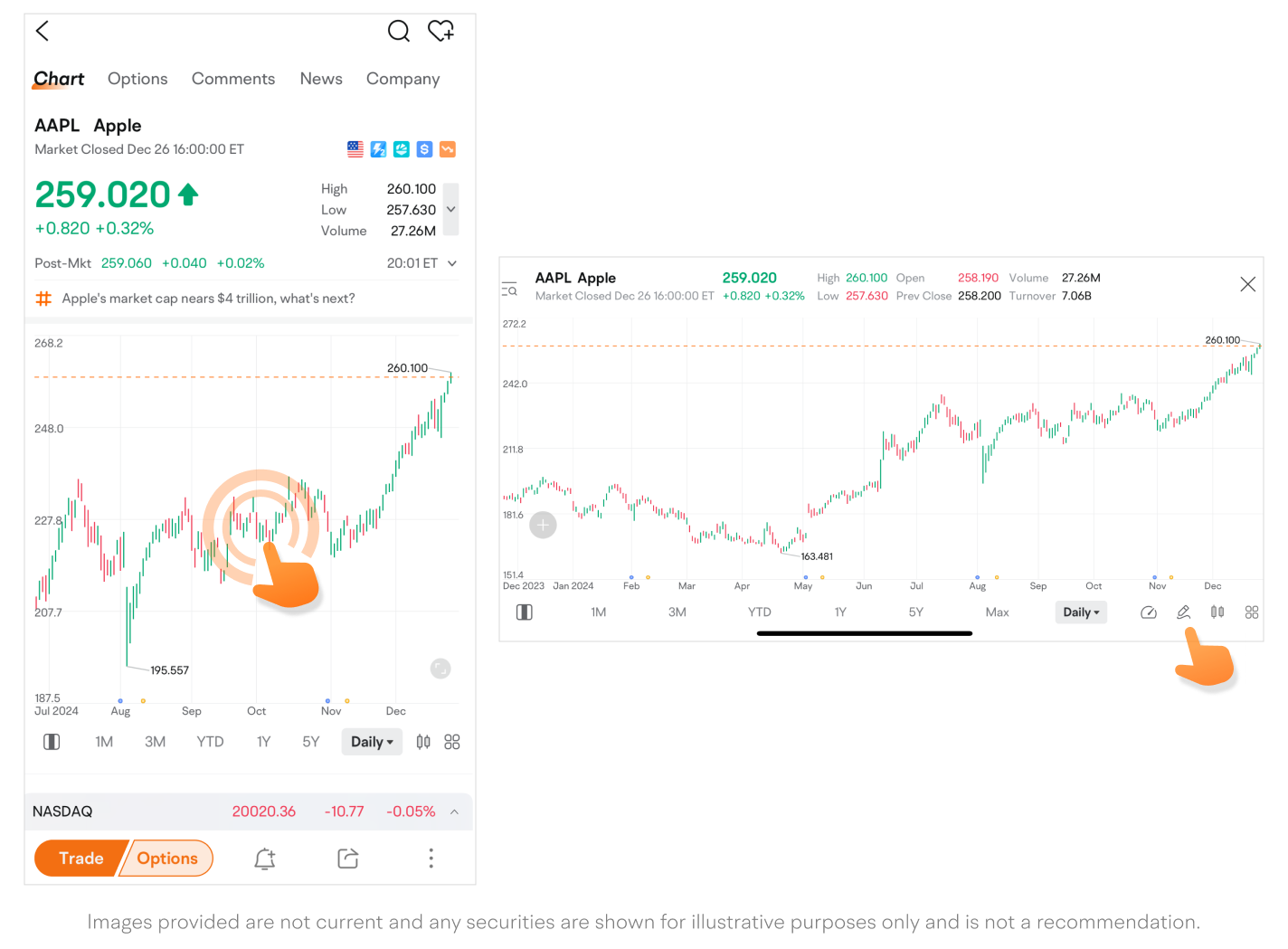

  • To switch to landscape orientation, perform one of the following actions:
    • Double tap anywhere on the chart;
    • Tap the "expand screen" icon located at the bottom right on the chart (ensure this icon is enabled in Charts settings);
    • Rotate your phone with the orientation lock turned off.

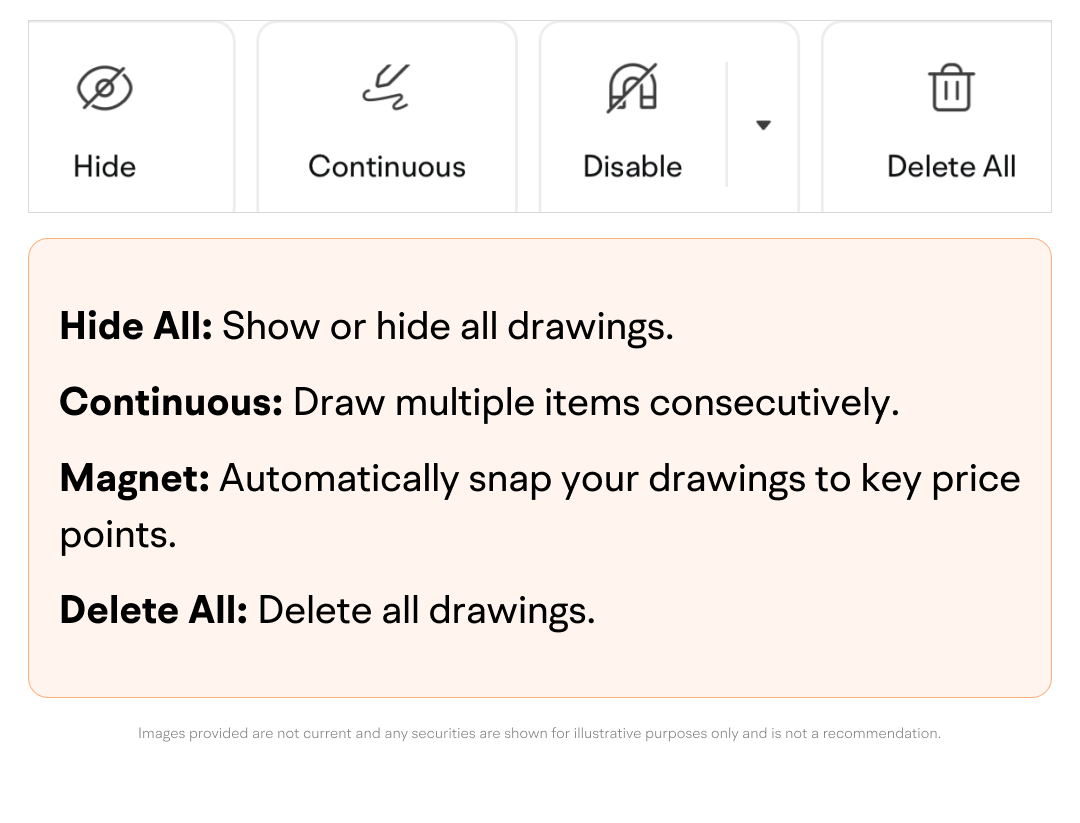

Tools overview

Hide All
Show or hide all drawings.
Continuous
Draw multiple items consecutively.
Magnet
Automatically snap your drawings to key price points.
Delete All
Delete all drawings.

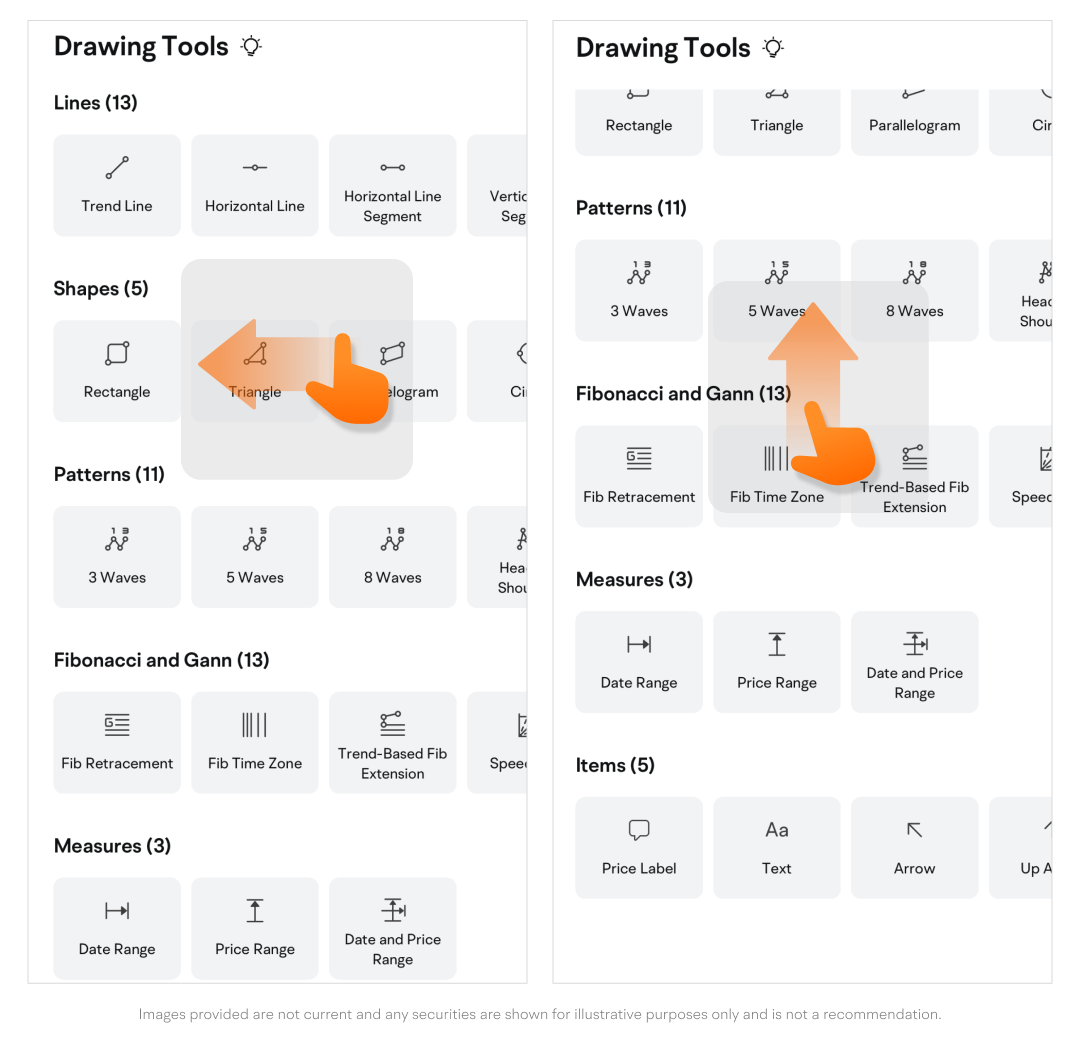

You can draw from a range of lines, shapes, patterns, and more.

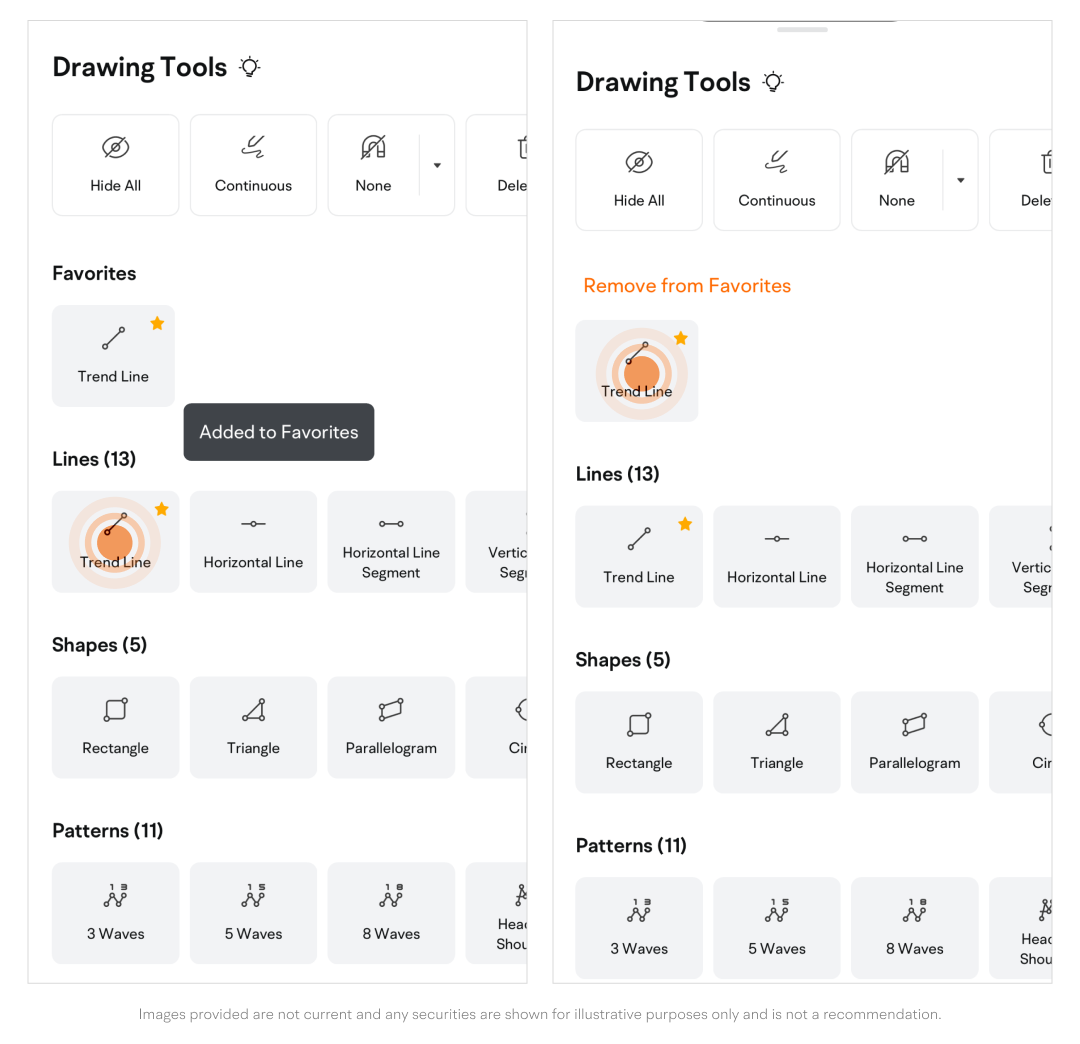

Long press a tool to add it to Favorites; long press a tool in Favorites to remove it.

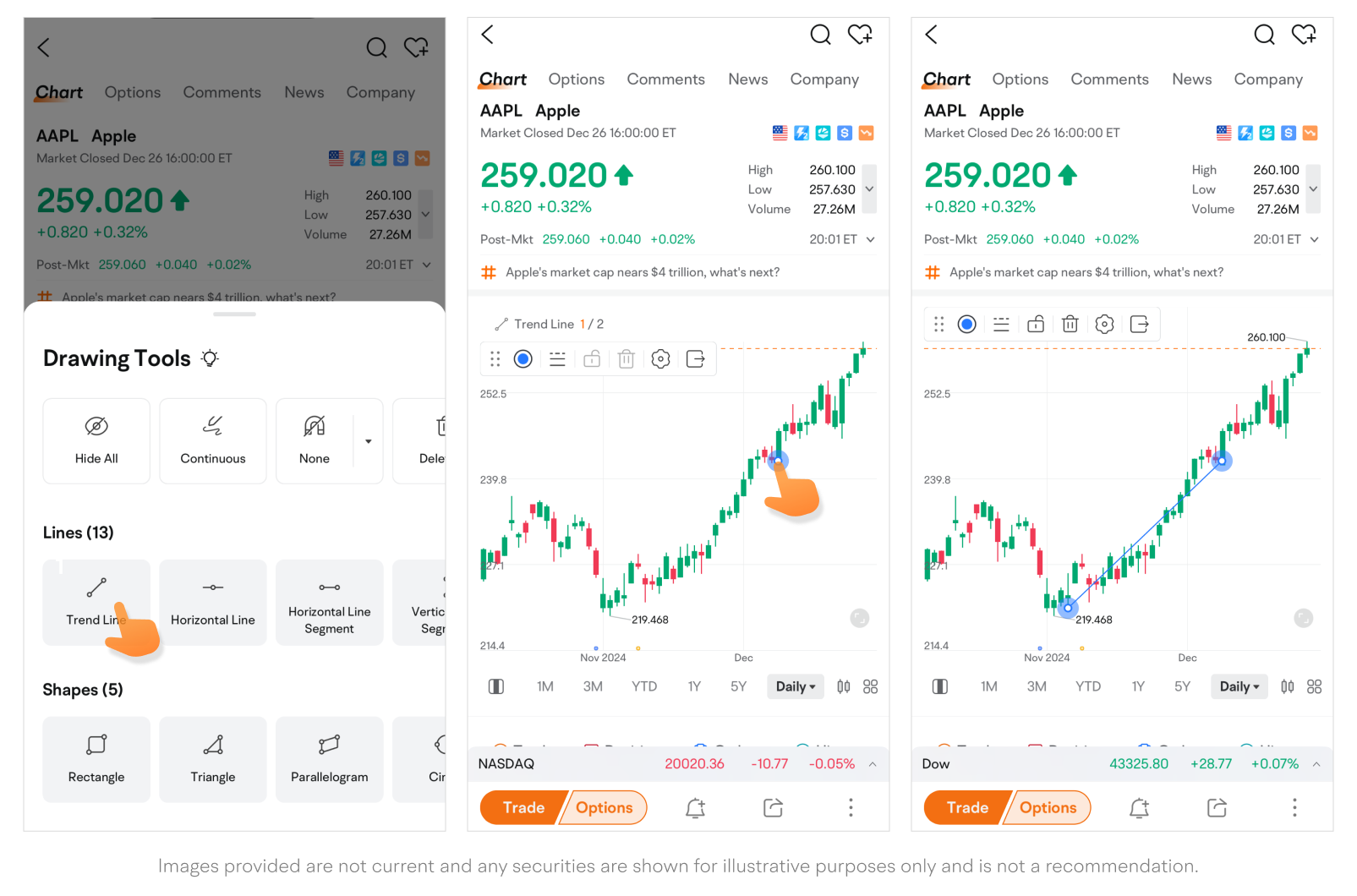

Steps to draw

  1. Select an item you want to draw.
  2. Tap on the chart to start drawing.
    1. The number of points needed depends on the type you select.
    2. Points will automatically connect to form the desired line, shape, or pattern.
  3. Tap anywhere outside a drawing to hide the toolbar; tap a drawing to show the toolbar.

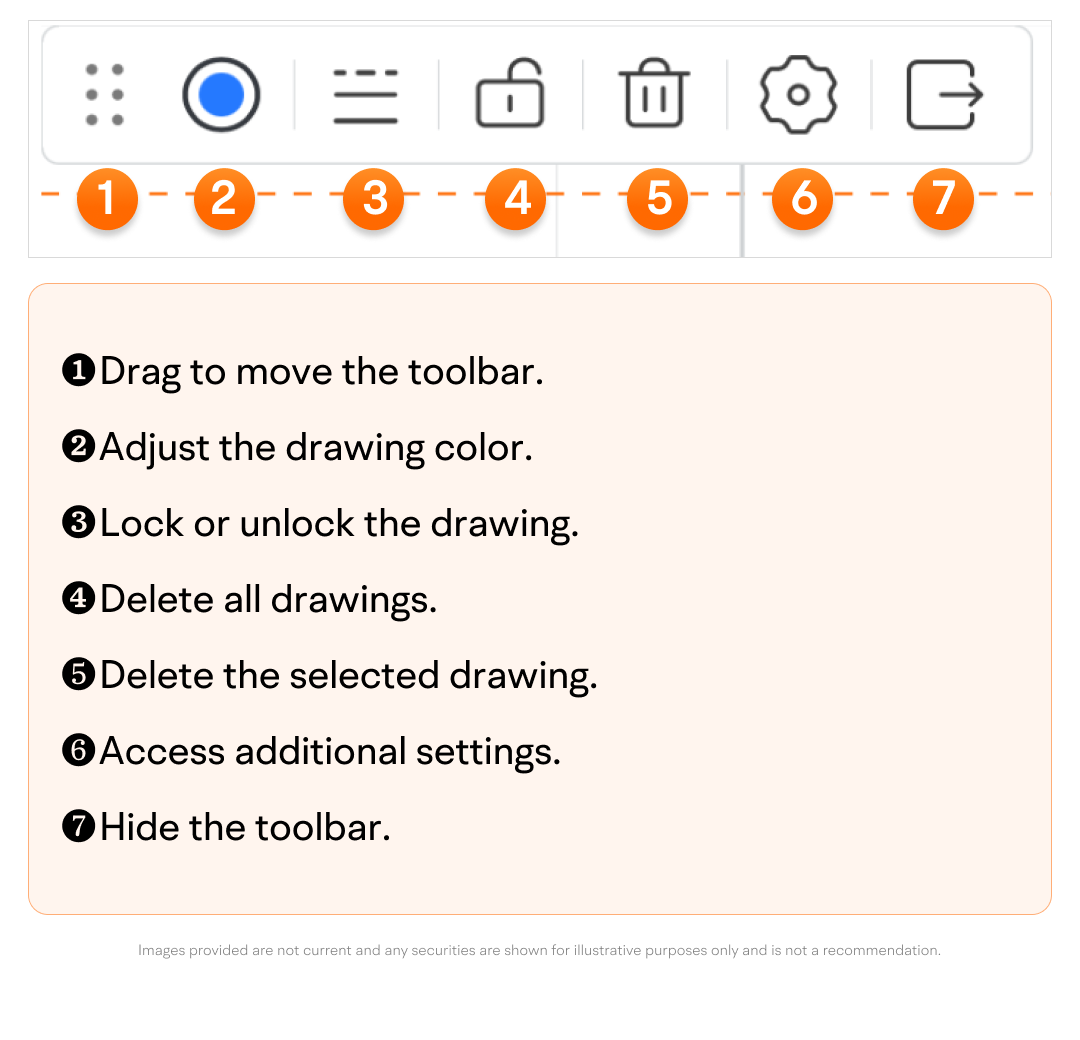

Toolbar
